15 kw electric motor MGM COMPRO

RET 30 ELECTRIC MOTOR

15 kW
Peak power
35 Nm
Max torque
8000
Max RPM
4000 g
Weight

RET 30 is suitable for very ambitious projects, mainly drones and multirotor applications. This 15 kw electric motor provides a great performance also in ultralight gliders, where low weight combined with high performance is one of the most important aspects.

RET 30 is suitable for many types of electric bikes, as well as marine applications such as small electric boats.

15 KW ELECTRIC MOTOR - RET 30

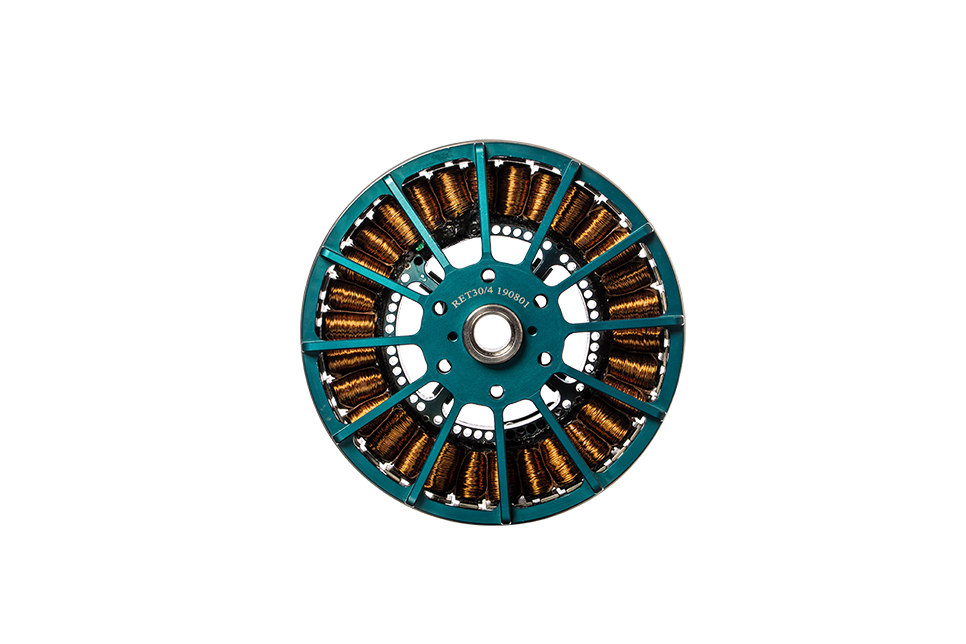

RET 30 | MGM COMPRO
torque
35 Nm
max power1
15 kW
rpm2
8000
max continuous power1
8-12 kW
diameter
169 mm
voltage
63-400 V
motor sensors
sensored or sensorless
cooling
air
  • Proven & high quality materials

  • Compact and durable design

  • Universal usage

    Air, ground and water projects.

  • Temperature monitoring

  • Sensor for absolute position

  • Variable winding

The most compact and light-weight category of motors in our portfolio. Their small dimensions combined with a low weight are ideal for aviation, marine, ground vehicle and other industrial projects. This 15 kw electric motor can work with high rotation speeds achieving up to 12 000 RPM.

If you didn’t find what you had been looking for have a look into our other products. We supplied our RET 30 motor to Ruppert Composite company to be used in their gliders.

Please enter your name, email address and phone number, we will get back to you asap.


    Related products

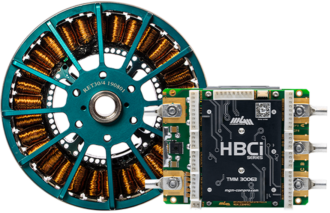

    12kW_REX30_HBCi-30063-propulsion-system
    (12 kW | 63 V | 35 Nm | 8000 rpm)
    drones, ultralight gliders, specialized applications
    low weight & high performance, great range of rpm 2000-8000
    high-performance & medium voltage controller

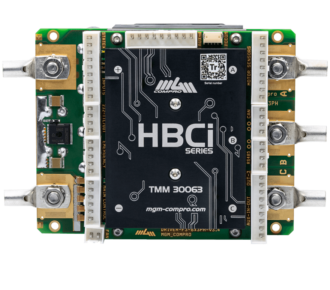

    MGM COMPRO HBCi 30063 front
